სპეციფიკაციები

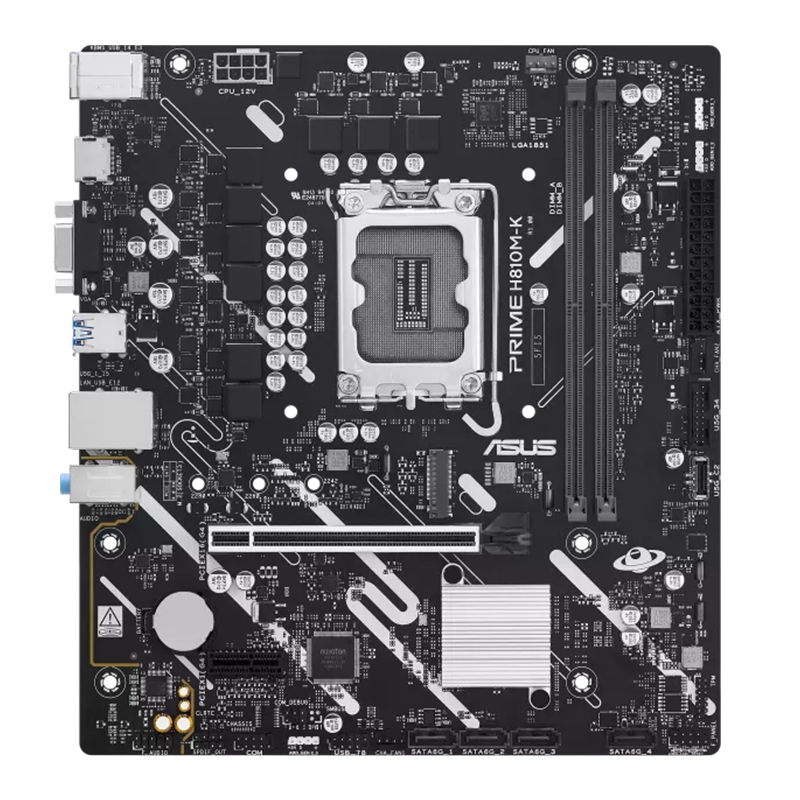

General Information
| Brand |
Asus
|
| Model/PN |
90MB1N10-M0EAY0
|
Color
Motherboard Features
| Compatibility Processors |
Intel Core Ultra Processors (Series 2)
|
| Form Factor |
Micro-ATX
|
| Socket |
LGA1851
|
| Chipset |
Intel H810
|
| Memory Slots Type |
DIMM
|
| Memory MHz |
7200MT/s with Intel Core Ultra 200S Plus Processors ,6400MT/s with Intel Core Ultra 200S Processors
|
| Number Of Memory Slots |
2
|
| Memory Type |
DDR5
|
| Max RAM Memory |
128 GB
|
| BIOS |
UEFI AMI BIOS, 2 × 16 MB Flash ROM
|
Expansion Slots
| PCIe 5.0 x16 |
No
|
| PCIe 4.0 x16 |
1
|
Storage
| SATA Controller |
დიახ
|
| M2 Slots |
1 × M.2
|
Motherboard Connectivity
| Bluetooth |
No
|
| Wi-Fi Antenna |
No
|
Motherboard Audio
| System |
7.1 Surround Sound
|
| Audio Controller |
Realtek High Definition Audio CODEC
|
| Number Of Audio Channels |
7.1
|
Back I/O Ports
| USB 2.0 |
4
|
| LAN (RJ45) |
1
|
| Optical S/PDIF out |
No
|
| HDMI |
1
|
| USB Type-C |
1
|
Internal I/O Ports
| Chassis Fan Connector |
2
|
| Thunderbolt header |
No
|
| USB Type-C |
No
|
| Front Audio Connector |
1
|
| SATA 6Gb/s Connectors |
4
|
| 24-pin Power Connector |
1
|
| 4-pin Power Connector |
No
|
| 8-pin Power Connector |
1
|
| CPU Fan Connector |
1
|
| Clear CMOS Jumper |
არა
|
